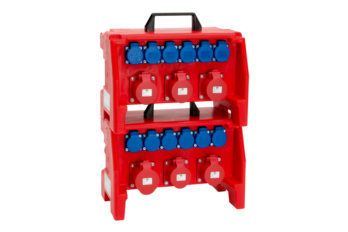

WSDV plastic multiple outlet
WSDV plastic multiple outlet
PWRDISTR-PLA-WSDV2
Register now and access more than 15,100 products
- FI and LS switches are securely protected behind a lockable built-in window
- Installation sockets are securely protected thanks to projecting housing
- Impact and weather-resistant plastic housing
- Stackable to save space
- Made in Germany
Portable socket distributor as a special supply point for connecting AC and three-phase power consumers on construction sites downstream of a connection distributor cabinet or a distributor/end distributor cabinet in line with DIN VDE 0100 Part 704.
Datasheets(X)
- For indoor and outdoor use
- Portable socket distributor as a special supply point for connecting AC and three-phase power consumers on construction sites downstream of a connection distributor cabinet or a distributor/end distributor cabinet in line with DIN VDE 0100 Part 704.
 | |
Type description | WSDV2 |
Output | Six shockproof sockets 16 A, 250 V, 1 CEE 32 A, 5 pin, 400 V, 2 CEE 16 A, 5 pin, 400 V |
Input | CEE 32 A, 5 pin, 400 V |
Cable type | 0 - not applicable |
Main fuse | 1 FI 40/0,03 A, type A, 3 LS 16 A, 1P, C, 2 LS 16 A, 3P, C |
Connected load | 22 kVA |
IP protection class | IP 44 |
Protection class | Protection class II/protective insulation |
Min./max. temperature conditions | -25 to 35 °C |
Material | Plastic |
Length x width x height | 396 x 238 x 322 mm |
Select RAL-colour code
!! NOTE: On-screen visualisation of the colour differs from real colour shade!!
