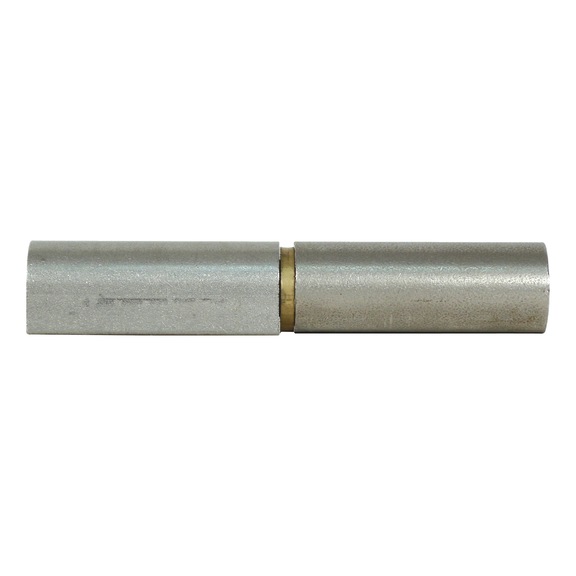

Weld-on hinge with brass ring
WELDHNGE-WSHR-DROPPROFIL-A4-14X80MM
Art.-no. 0689582012
EAN 4053479463995
Individual price display after login
Show availability in Würth Portugal shop
In order to check the stock in a Würth Portugal branch, please log in.
If you have any questions, please call our service hotline at +351 211 989 840.
You are not yet a Würth Portugal customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,100 products
Flat ends
- Male and female parts made from AD 37 Pb steel
- Pin made from S 300 Pb steel
Product information
Datasheets(X)
Application area
For metal doors, fire doors, armoured doors, fire-resistant cabinets, metal bodywork, machine-tool doors and switch cabinets
 | |
Height | 80 mm |
Width | 17 mm |
Material | Stainless steel A2 |
Roll height | 78 mm |
Roll diameter | 14 mm |
| *All data in mm | A = diameter | B = height | L = length | H = length | Diameter x spindle length | Brass ring dimension |
| 0689 580 060 | 10 | 12.4 | 29 | 60 | 5.5 x 32 | Dia. 5.5 x 10 x 2 |
| 0689 580 080 | 13 | 16 | 38.8 | 80 | 7 x 36 | Dia. 7 x 13 x 2.5 |
| 0689 580 100 | 16 | 20 | 48.5 | 100 | 9 x 44 | Dia. 9 x 16 x 3 |
| 0689 580 120 | 16 | 20 | 48.5 | 120 | 9 x 44 | Dia. 9 x 16 x 3 |
| 0689 580 140 | 20 | 25 | 68 | 140 | 11 x 51 | Dia. 11 x 20 x 4 |
